PhyMOTION stepper motor controller
Drivers & controllers
Downloads
phyMOTION.pdf
Description
PhyMOTION stepper motor controller
PhyMOTION is Phytron’s freely programmable motion controller (PMC) for multi axes stepper motor applications.
- Integrated power stages up to 120 V, 15A
- Modules with Safe-Torque-Off (SIL 3 / PLe)
- Optional integrated power supply
- 2 limit switches and 1 reference switch per axis already included (electrically isolated)
- Optional encoder (ENDAT / SSI), resolver and temperature evaluation(Pt / K-element) per axis via sub modules
- Interpolation (per indexing module 2 axes circular and two more axes linear)
- I/O modules (digital 8/8; analogue 4/4)
- Script program administration
- Elegant, straight forward programming with the free phyLOGICTM protocol and software (compatible to our well-proven MiniLog protocol)
- Variety of HMI-Interfaces: optional integrated Touch-Display, external Touch terminal, BT5 AM operator panel or android Tablet via Bluetooth.
We not only supply stepper motors, but also all the other products needed to achieve an optimal process. In our stockpile we have, for example, various types of drive technology and transport components, hydraulic components, electronic motors and our own monitoring system the Beegle. Do you want to know more about a product or do you have a question? Our specialized sales engineers will be happy to assist you in finding the best product needed for you technical challenge. Feel free to contact us if you have questions or seek information.
Characteristics
- Compact
- Freely programmable
- Modular
- Variety of HMI-Interfaces
Ask our expert Frans
Do you have a question about this product, delivery time or price? I am happy to help you with this. You will receive a response from me within one working day.
Ask your question
Related products

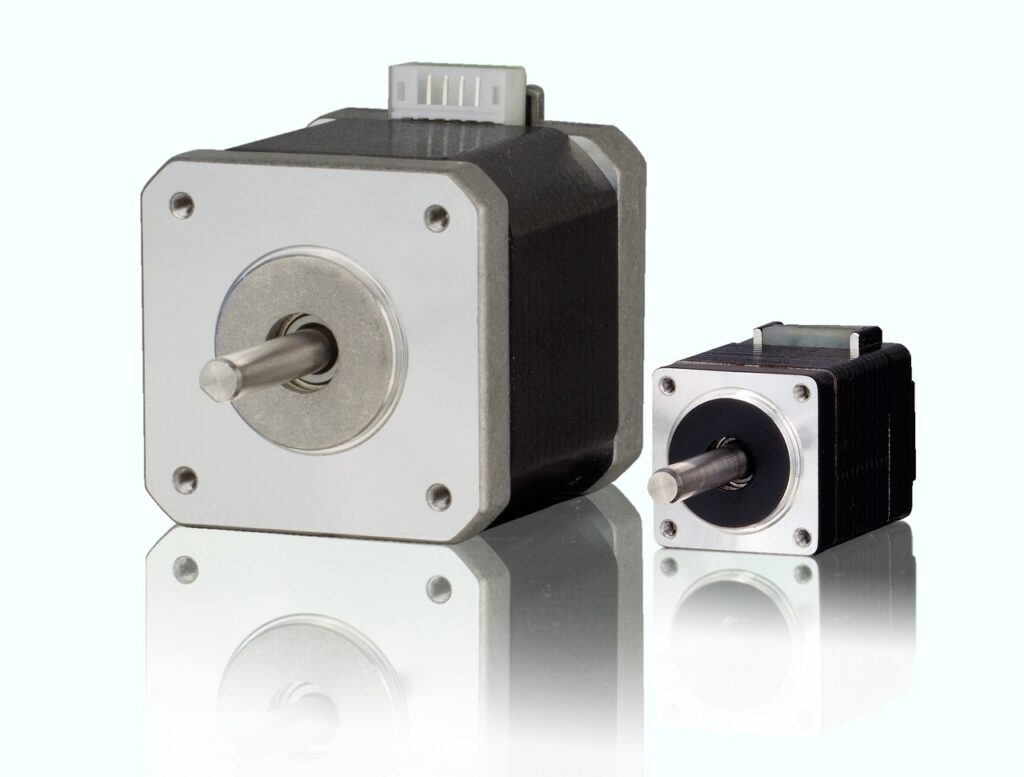

phySPACE stepper motor The phySPACE 2-phase-hybrid stepper motor is built to resist vibrations, radiation and high temperature. It while…

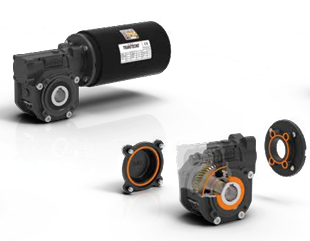

WashdownTecno – The gearmotors for outdoor applications Outdoor applications pose a unique challenge for electromechanical components, especially gear…
phyBASIC stepper motor The phyBASIC combines the advantages of a price-optimised design with excellent operating characteristics. That makes the…

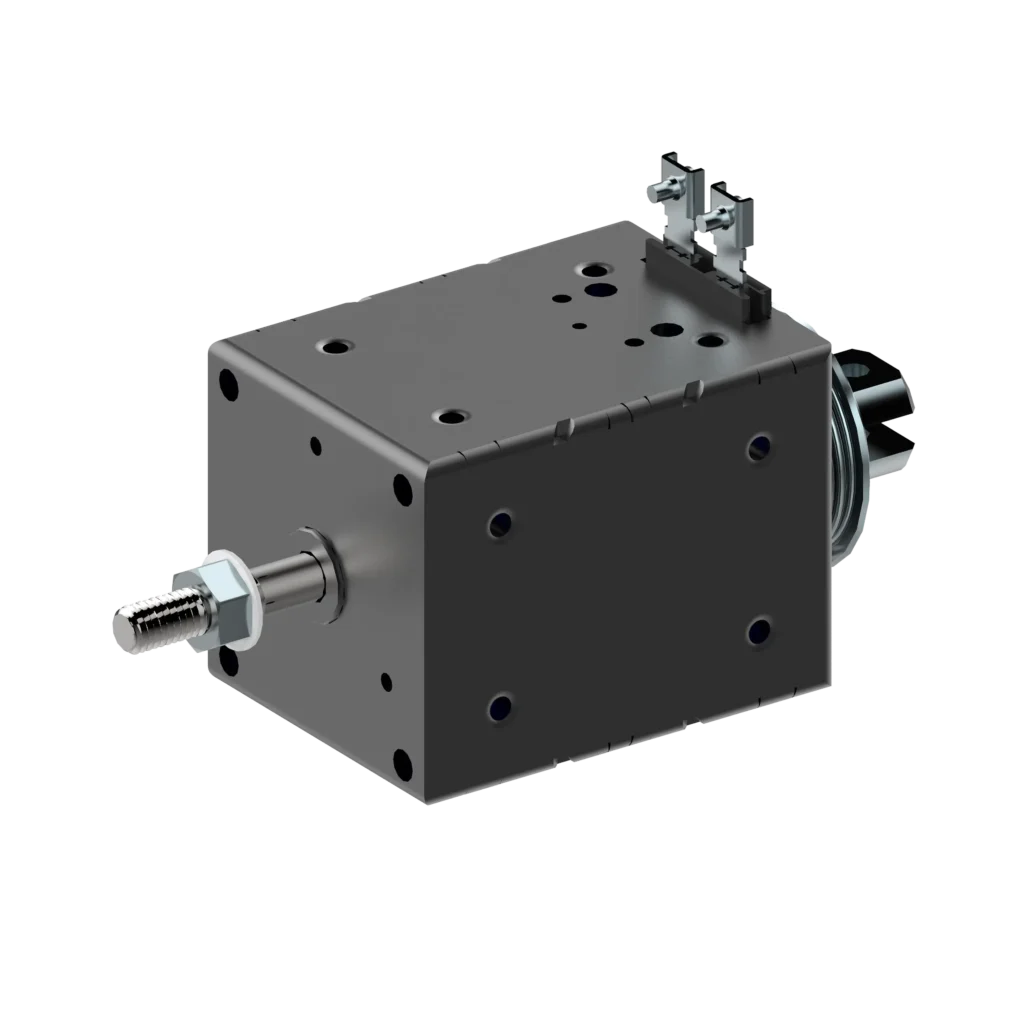

Economy solenoid – type GE Type GE solenoid is a solenoid with closed housing for high demands on…
