Internal freewheels type FZ … P2RS

Internal freewheels type FZ … P2RS

For application as backstop in installations with high speeds in freewheeling operation and as overrunning clutch in installations with low speeds in driving operation.

• Backstop
• Overrunning Clutch
• Indexing freewheel

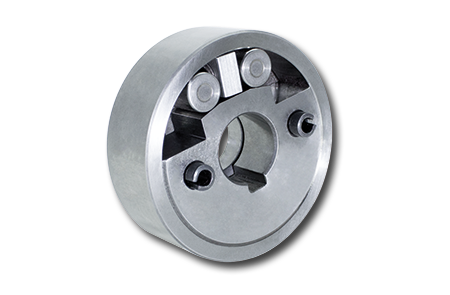

• Internal Freewheels FZ … P2RS are sprag freewheels with bearing support and ball bearing properties. The freewheels are supplied grease-filled for normal operating conditions.
• The freewheel is built into the customer ­housing. This makes compact, space-saving ­fitting solutions possible.
• Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection.
• Bores up to 40 mm.
